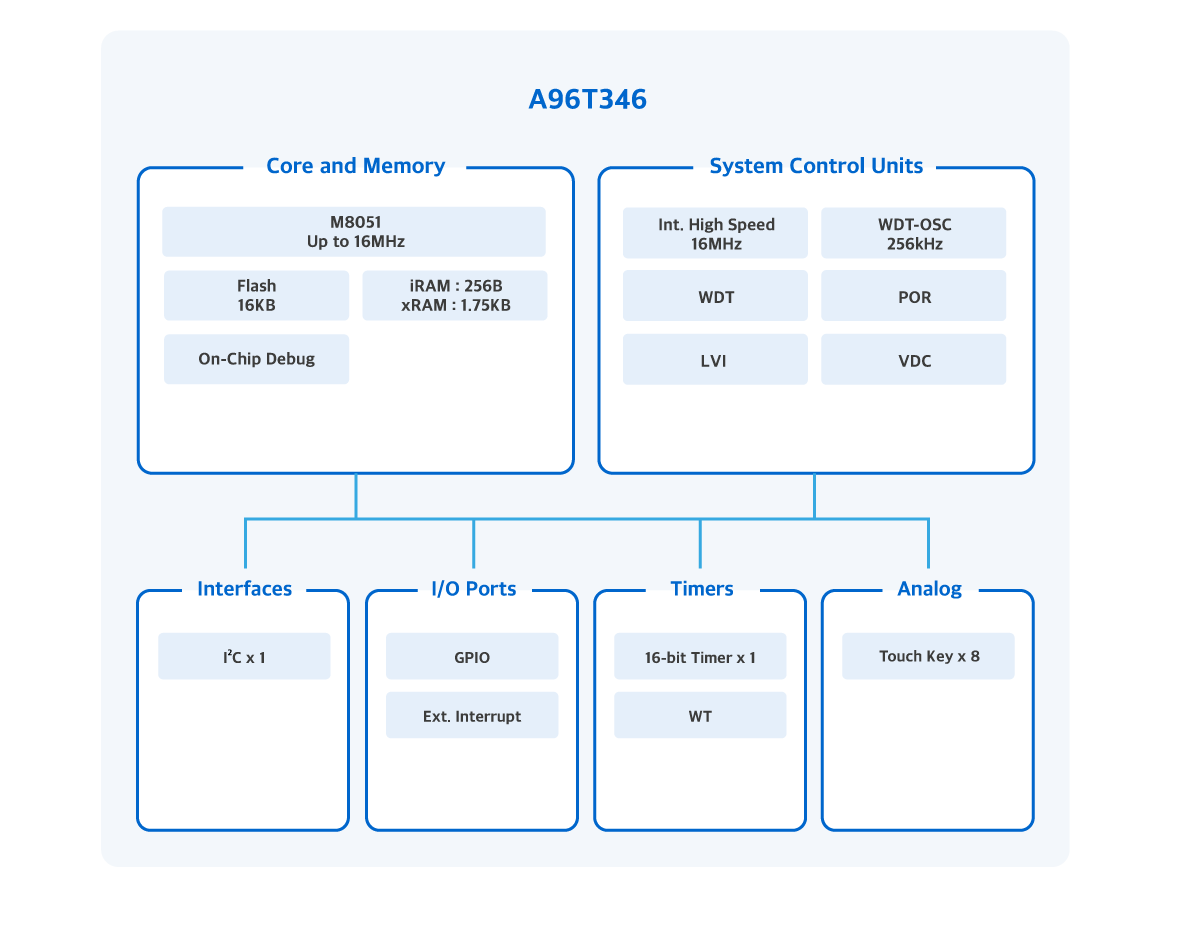

The A96T346 is an advanced CMOS 8-bit microcontroller with 16K bytes of FLASH. This is powerful microcontroller which provides a highly flexible and cost effective solution to many embedded control applications. This provides the following features : 8CH self-capacitive Touch switch, 16K bytes of FLASH, 256 bytes of SRAM, 1792 bytes of XRAM, 8CH AD-converter, 16-bit timer/counter, watchdog timer, I2C, on-chip POR, BOD and 16-bit PWM output, on-chip oscillator and clock circuitry. The A96T346 also supports power saving modes to reduce power consumption.

Product Spec

Availability	Mass Production
Core	8051
Op. Freq. (MHz)	16
Flash (Kbytes)	16
RAM (Kbytes)	2
E2P (Bytes)	0
Pin Count	10
Max I/O Pins	8
Timer (8-bit)	0
Timer (16-bit)	1
Watch Dog Timer	1
PWM (8-bit)	0
PWM (10-bit)	0
PWM (16-bit)	1
3-phase PWM (10-bit)	0
3-phase PWM (16-bit)	0
ADC (bit)	12-bit
ADC (12-bit)(Unit)	1
ADC (ch)	5
ADC Speed (ksps)	250
Number of OP Amp.	0
IR Learning Op. AMP	N
Number of PGA	0
Number of Comparator	0
USART (ch)	0
UART (ch)	0
SPI (ch)	0
I2C (ch)	1
I2S (ch)	0
USI	0
SIO (ch)	0
LCD Driver	0
LED Driver / High current port	0
IR Driver TR	N
HSI Freq. (MHz)	0
HSI Err. (±%) 85	0
HSI Err. (±%) 105	0
Sub. X-tal Support	N
Ext. X-tal Support	N
Touch Key (ch)	8
Key Scan : M-Key	N
Key Scan : T-Key	N
ISP	Y
CRC	N
Carrier Generator	N
Min Op Voltage (V)	2.7
Max Op Voltage (V)	3.6
Min Op Temp (℃)	-40
Max Op Temp (℃)	85
Remarks	0
Package	10-DFN
Package Size (mm)	1.8x2.1-0.4
