L1 (M8051, 저전력)
Description
Devices in ABOV Semiconductor’s 8-ibt Microcontroller including external communication and STOP mode, along with Ultra Low Power (ULP) function. L1 series can be applied to various battery-operated applications.
▶ A96L116 : Max. 16KB Flash memory/ 1KB SRAM/ 256B Data Flash memory
◎ Operating Frequency : 16MHz
◎ Operating Voltage : 1.71V ~ 3.6V
◎ Operating Temperature : -40℃ ~ +85℃
◎ Key Features : ULP/ LP UART/ LP Timer/ 12-bit ADC (111.1ksps)/ 128-bit Unique ID
◎ Power Consumption : Run mode: Max 94uA/MHz, STOP mode: 0.9uA (with RTCC)
◎ Communication: LPUART(1-ch)/ UART(1-ch)/ 400kbps I2C(Max. 1-ch)/ SPI(Max. 1-ch)
◎ Potential Application : Smart meters / Door lock / Building and home control / IoT devices / Wireless sensor networks / Portable healthcare / Portable consumer electronics / Battery operated applications

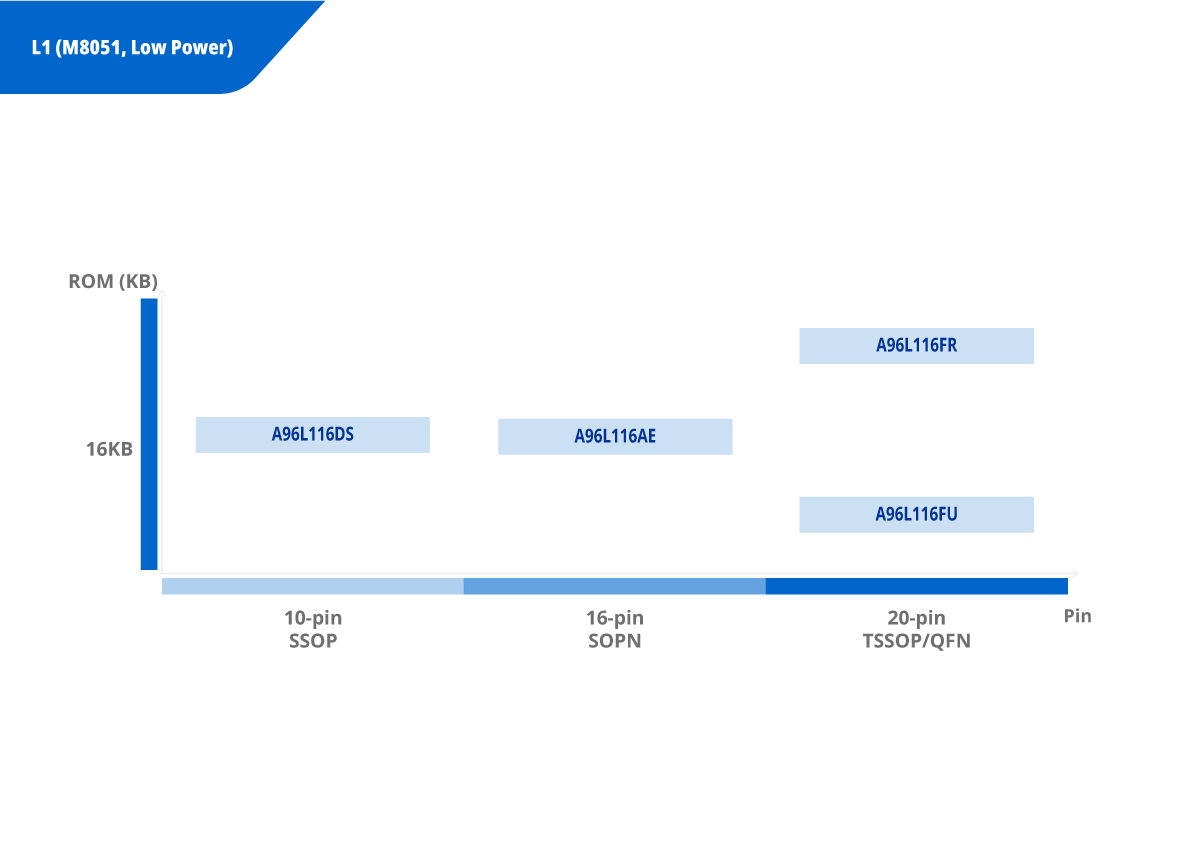

Family LineUp
